1MB DIP DRAM for A590, A2091 and A3000 Chip RAM: 8x HM514256AP-10

Details

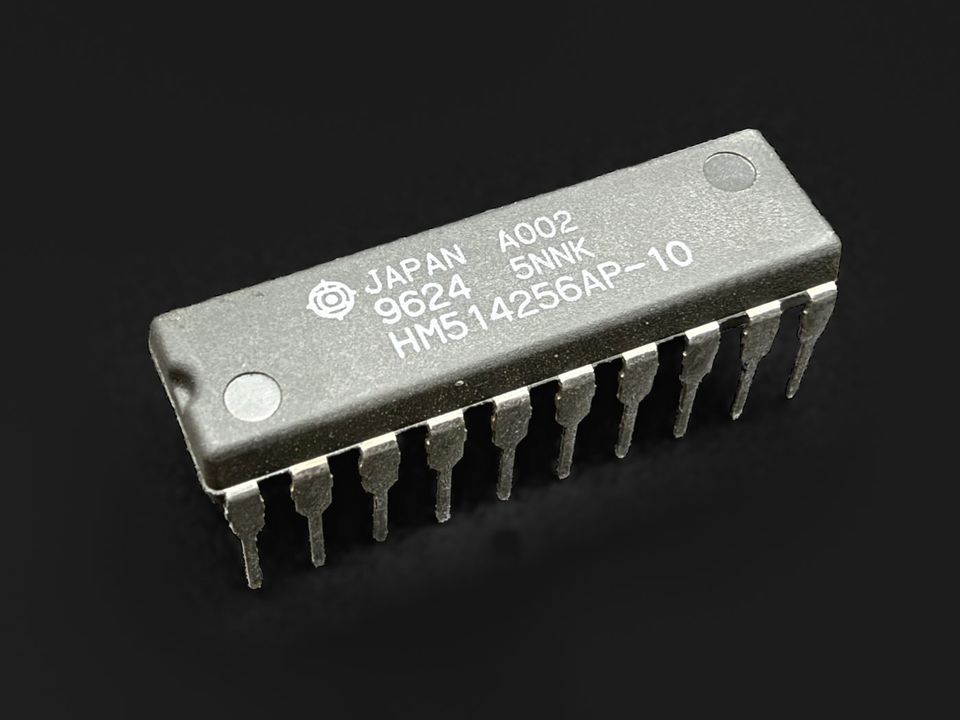

Eight Hitachi HM514256AP-10 DRAM chips, 1MB in total, in the 20-pin DIP package. The A590 and A2091 hard drive controllers and the Amiga 3000’s chip RAM call for 120 ns or faster, so these 100 ns chips fit.

Specifications

• 256K x 4 bits, 100 ns, fast page mode
• 20-pin DIP

Where they fit

• A590 and A2091 hard drive controllers: sixteen DIP sockets for 0.5, 1 or 2MB; two sets fill all sixteen
• Amiga 3000 chip RAM: the board comes with 1MB of chip RAM fitted at U259 to U266, and eight empty sockets (U267 to U274) take a second set for 2MB. Many A3000s shipped with 1MB of DIP Fast RAM, and a common upgrade is to fit ZIP Fast RAM and move those DIP chips into the empty chip RAM sockets. A set of these chips does the same job
• Repairs and ReAmiga builds: the A500 (Rev 6A and later, chip RAM at U16 to U19), the A501 Rev 6C and the cost-reduced A2000-CR Rev 6 (U501 to U508) use the same chips. The RAM on those boards is soldered down, so extra chips are only for repair or for building a ReAmiga

These chips are not for the A3000’s DIP Fast RAM sockets, which need 80 ns parts. For any other board, check its chip list before ordering.

What you get

8 chips for a total of 1MB.
